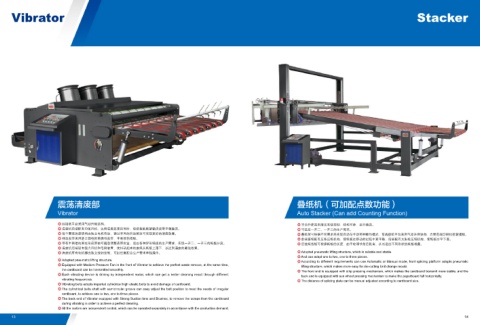

Vibrator Stacker
震蕩清廢部 疊紙機（可加配點數功能）
Vibrator Auto Stacker (Can add Counting Function)
前接紙平臺采用氣動升降結構。 平臺升降采用液壓系統控制，結構可靠，運行穩定。
清廢機前端配有中壓風機，達到清廢效果的同時，使紙板能貼緊輸送皮帶平穩輸送。 可適應一開二、一開三的生產需求。
每個震蕩清廢結構由獨立電機傳動，通過不同的抖動頻率可實現更好的清廢效果。 疊紙架可根據不同需求來實現自動與手動兩種操作模式，前端接紙平臺采用氣動升降結構，方便前端印刷機拆裝模板。
抖動皮帶采用進口圓柱形高彈性皮帶，不易損傷紙板。 前端接紙配有壓條壓紙機構，使紙板在移動的過程中更平穩；后端配有太陽輪壓紙機構，使紙板水平下落。
帶有半圓槽的圓柱形皮帶軸可隨意調整皮帶位置，適應各種異形紙板的生產需求，實現一開二、一開三的紙板分流。 后接紙擋板可根據紙板的長度，由手輪調節前后距離，從而適應不同形狀的紙板堆疊。
清廢機后端設有強力風機和毛刷裝置，使抖動起來的廢紙從紙板上落下，以達到清廢的最佳效果。
清廢機所有電機都由獨立按鈕控制，可以任意配合生產需求單獨操作。 Adopted pneumatic lifting structure, which is reliable and stable.
And can adapt one to two, one to three pieces.
Adopted pneumatic lifting structure. According to different requirements can use Automatic or Manual mode, front splicing platform adopts pneumatic
Equipped with Medium Pressure Fan in the front of Vibrator to achieve the perfect waste remove, at the same time, lifting structure, which makes more easy for die-cutting Unit change mould.
the cardboard can be transmitted smoothly. The front end is equipped with strip pressing mechanism, which makes the cardboard transmit more stable; and the
Each vibrating device is driving by independent motor, which can get a better cleaning result through different back end is equipped with sun wheel pressing mechanism to make the paperboard fall horizontally.
vibrating frequencies. The distance of splicing plate can be manual adjusted according to cardboard size.
Vibrating belts adopts imported cylindrical high elastic belts to avoid damage of cardboard.
The cylindrical belts shaft with semicircular groove can easy adjust the belt position to meet the needs of irregular
cardboard, to achieve one to two, one to three pieces.
The back end of Vibrator equipped with Strong Suction fans and Brushes, to remove the scraps from the cardboard
during vibrating in order to achieve a perfect cleaning.
All the motors are independent control, which can be operated separately in accordance with the production demand.
