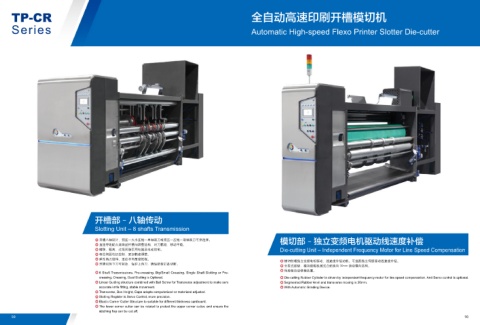

TP-CR 全自動高速印刷開槽模切機
Series Automatic High-speed Flexo Printer Slotter Die-cutter
開槽部 – 八軸傳動
Slotting Unit – 8 shafts Transmission
開槽八軸設計，預壓—大小壓線—單軸雙刀或預壓—壓線—雙軸雙刀可供選擇。 模切部 – 獨立變頻電機驅動線速度補償
直線導軌配合滾珠絲桿橫向調整結構，對刀精準，移動平穩。
橫移、箱高、過紙間隙采用電腦及電動控制。 Die-cutting Unit – Independent Frequency Motor for Line Speed Compensation
相位伺服電機控制，更加精密調整。
彈性角刀結構、適應不同厚度紙板。
模切膠輥獨立變頻電機驅動，線速度補償功能。可選配獨立伺服驅動線速度補償。
開槽切角下刀可轉動，保護上角刀，確保紙板釘條切斷。
分段式膠墊，模切膠輥機械式凸輪換向 30mm 游動橫向結構。
8 Shaft Transmissions, Pre-creasing, Big/Small Creasing, Single Shaft Slotting or Pre- 帶膠墊自動修模裝置。
creasing, Creasing, Dual Slotting is Optional. Die-cutting Rubber Cylinder is driven by independent frequency motor for line speed compensation. And Servo control is optional.
Linear Guiding structure combined with Ball Screw for Transverse adjustment to make sure Segmented Rubber Anvil and transverse moving is 30mm.
accurate knife fitting, stable movement. With Automatic Grinding Device.
Transverse, Box Height, Gaps adopts computerized or motorized adjusted.
Slotting Register is Servo Control, more precision.
Elastic Corner Cutter Structure to suitable for different thickness cardboard.
The lower corner cutter can be rotated to protect the upper corner cutter, and ensure the
stitching flap can be cut off.
